Common Operational Issues

Speedometer Overview

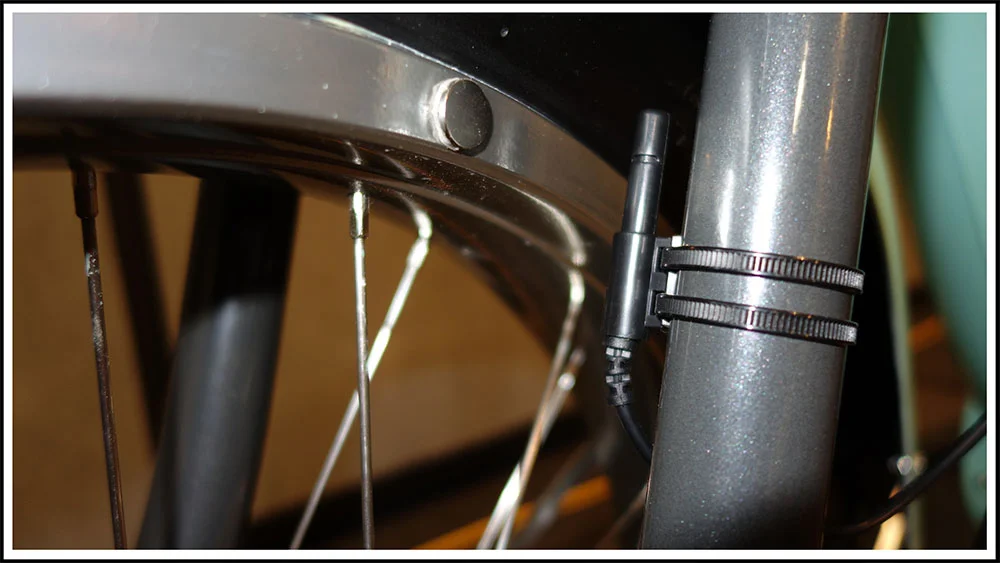

The speedometer sensor is mounted to the left front fork and connects directly to the Cycle Analyst LCD Display. It is vertically mounted on the inside of the fork - closest to the rim and held in place by two zip ties.

A small circular magnet is mounted to the side of the rim with heavy duty double-sided adhesive tape (about 1/16" thick).

Every time the magnet passes by the sensor, the CA counts that as one wheel rotation, which allows the CA to calculate your speed.


Speedometer Not Working

If your speedometer is not working, it is most likely one of the following issues.

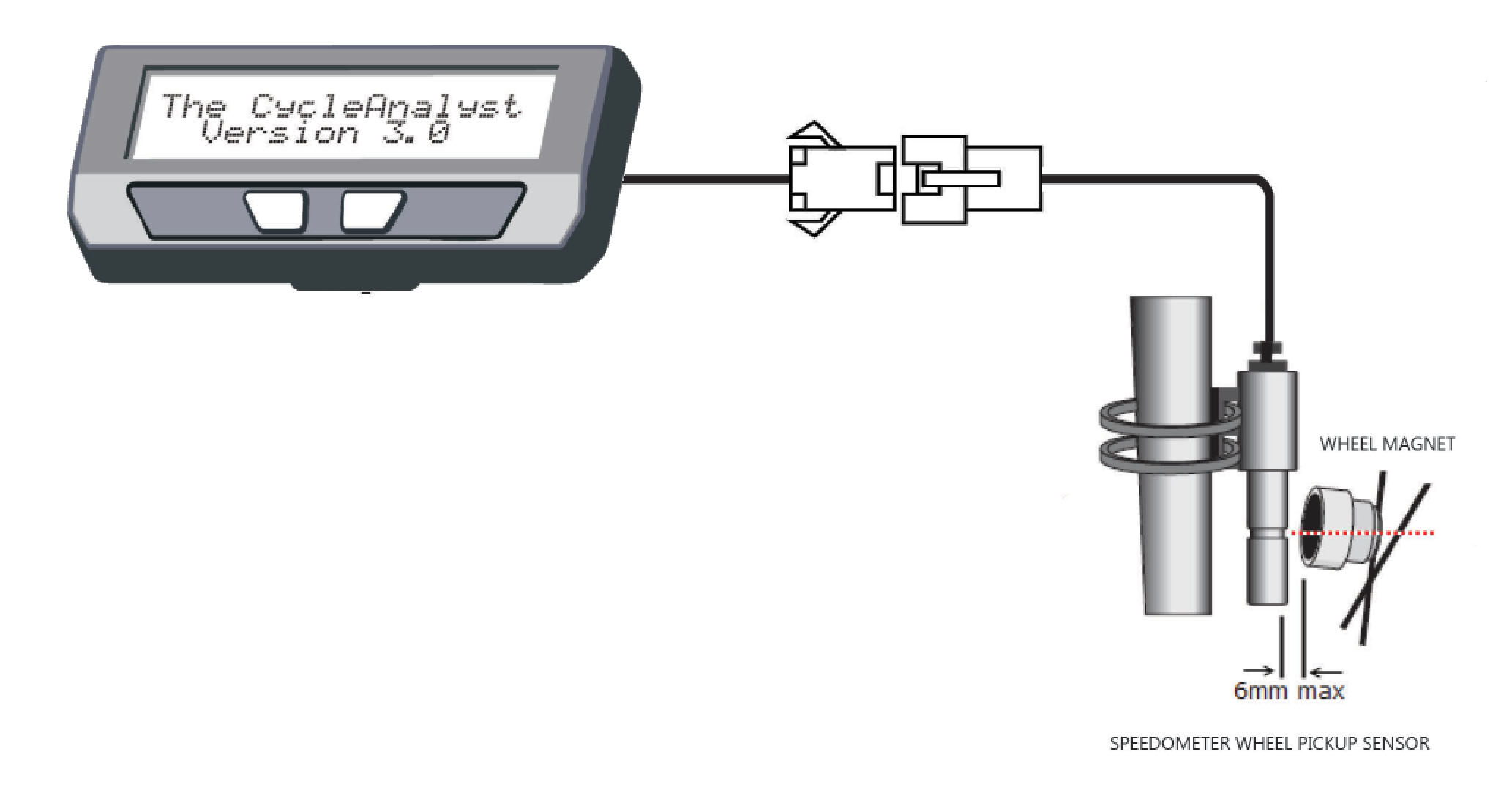

Check the wheel magnet, pick-up sensor and modular connector.

Check the wheel magnet, pick-up sensor and modular connector.

✔︎  The speedometer sensor is no longer positioned correctly. Ensure it is positioned closest to the rim and the line on the sensor aligned with the center of the speedo magnet.

✔︎  The speedo magnet was knocked off and must be replaced.

✔︎  The modular connector to the CA is disconnected or has a poor connection. This is one of the multiple connectors connecting the top console to the e-cruiser - small white two-pin connector.
